Because MELAcare enables systematic cleaning, disinfection and, if necessary, oil care
between treatments: For maximum patient safety, efficient workflows and instruments that are
instruments ready for use at all times.

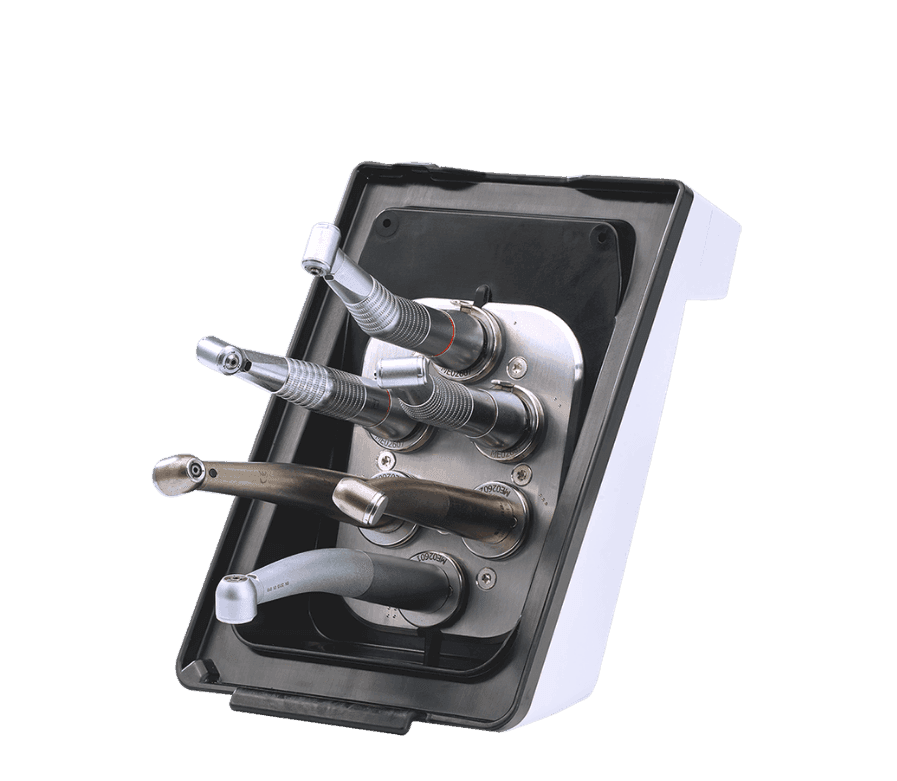

MELAcare Lid Blue
for reprocessing and care of up to 6 handpieces or turbines
MELAcare Lid Green
for cleaning and disinfection of up to 6 ultrasonic scaler tips
ADDcare Station
Documented chuck care directly on MELAcare
ProControl
Batch release directly on the large touch display
iDos
Dosing module for precise oiling with Care Oil
Quality made in Germany
developed, designed and produced in Berlin
Expert guidance - just for You.
Get in touch with our international MELAG hygiene experts: We’re here to advise you personally and help you find the best hygiene solution tailored to your requirements.
Get in touch with our international MELAG hygiene experts: We’re here to advise you personally and help you find the best hygiene solution tailored to your requirements.
Because when it comes to handpieces and turbines, only one thing matters: MELAcare.
Do you know that feeling when a new transmission instrument simply runs perfectly? When everything works smoothly? This feeling now has a name: MELAcare - for fully automatic cleaning, disinfection and oil care between treatments:
🔵 MELAcare Lid Blue for cleaning, disinfecting and oiling of e.g. 6 contra-angle handpieces
🟢 MELAcare Lid Green for cleaning and disinfecting of e.g. 6 ultrasonic scaler tips

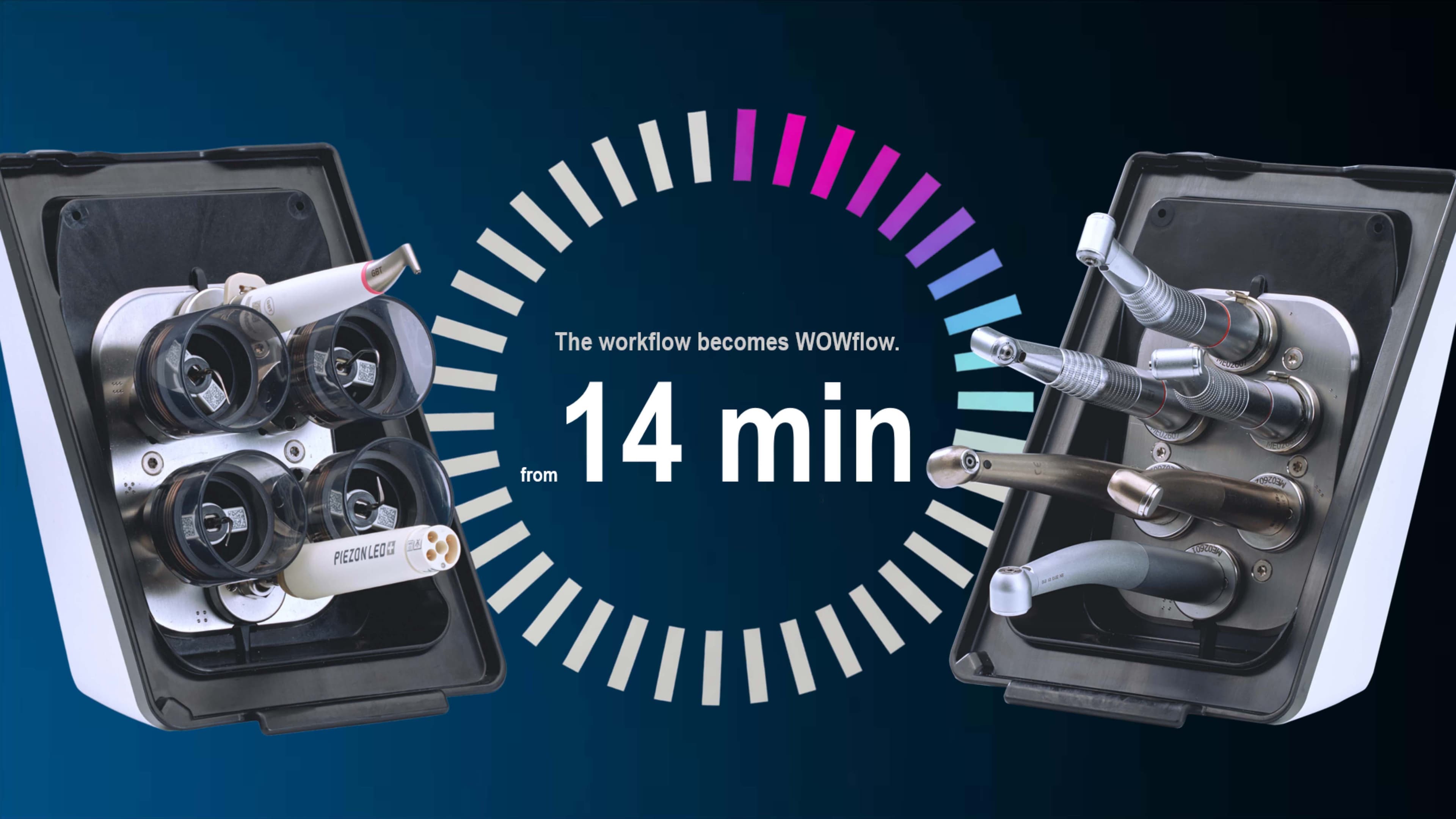

✨ Systematic reprocessing in accordance with EN ISO 15883-1/2 from approx. 14 min
✨ Gentle on instruments and chemical-free thanks to ULTRAflow Technology

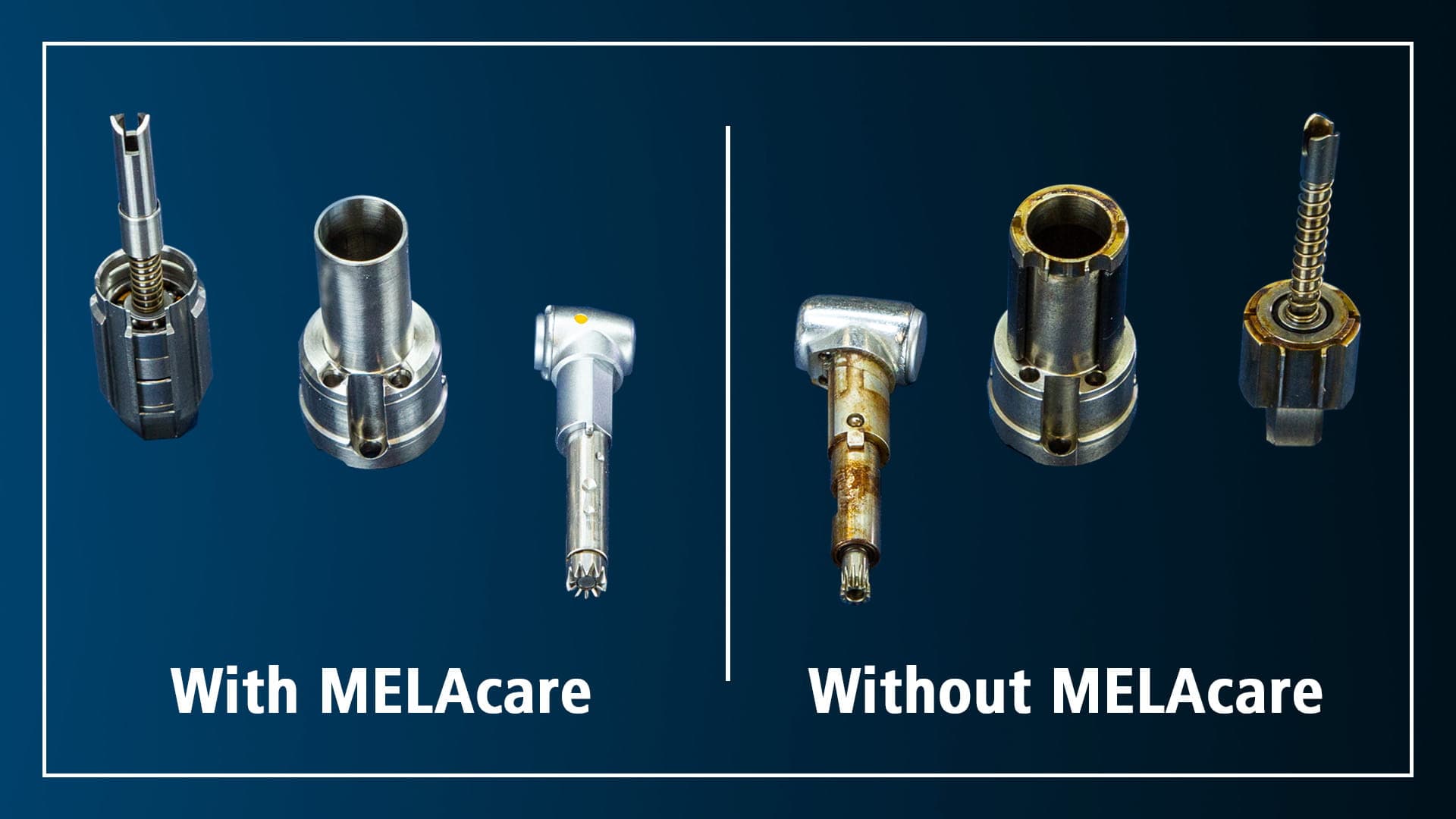

✨ Precise lubrication and chuck care for reliable functionality and a long service life of your valuable instruments
✨ Large touch operating concept – perfectly aligned with MELAG autoclaves and washer-disinfectors
✨ Smart documentation and approval directly on the device at no extra cost

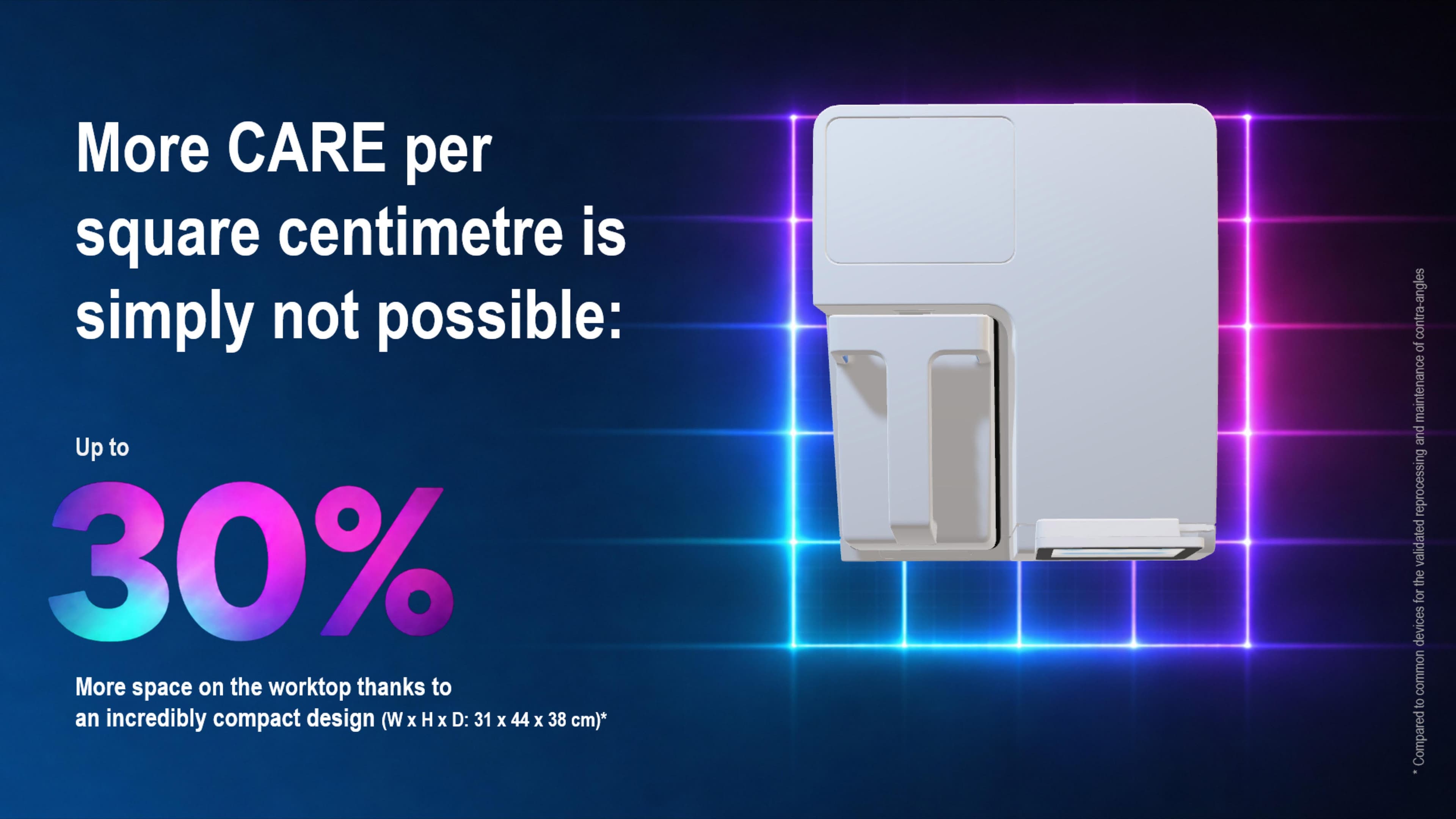

✨ Incredibly compact design with a small footprint
✨ Significantly reduced routine tasks save valuable working time
The new MELAcare treatment and care unit impresses with efficient hygiene workflows: Without stress. Without compromise. Only with possibilities for reprocessing up to 144 instruments per working day.
MELAcare will be available in the EU from 20 July 2026. Availability outside the EU depends on the respective registration process.
MELAcare enables systematic cleaning, disinfection and, if necessary, oil care between treatments: For maximum patient safety, more efficient workflows and instruments that are always ready for use.
Cycle time
Adapter for handpieces with an external spray channel
Safety to the Power of 3: With the silicone tubes, you can adapt up to 3 spray channels in the Blue lid, thereby ensuring the conditions necessary for reliable, hygienic reprocessing of your handpieces and contra-angles.
Our 500 employees take care of every detail so that you don't have to. For over 70 years, we have been developing, producing and optimizing our solutions for instrument reprocessing far beyond industry standards.
Made in Germany. Made for You. So that you can rely on our products without restriction, we develop, produce and test them in Berlin far beyond industry standards. In this way, we guarantee that the safest and most reliable solutions are used in your practice or clinic.
To achieve this, we only use components of the highest quality that we have audited in an uncompromising manufacturing process. After assembly, each device is subjected to a three-day endurance and stress test including factory testing in Berlin. Deviations or irregularities are documented by our innovative IT system immediately and the devices are subjected to a further full test.
Of course these detailed tests with various different loads take a lot of time and energy, but the high level of satisfaction among customers is our most significant motivation and the basis for our innovative leadership around the world.
The pioneering spirit of our success: With passion, innovative strength and attention to detail, more than 160 excellently educated engineers ensure that complicated things become uncomplicated.
MELAG products should inspire, be fun and, last but not least, advance your infection control. We therefore invested around 30 % of our turnover in the research and development of new, innovative device concepts.
With these pioneering technologies, we have been revolutionising the instrument reprocessing workflow in over 700,000 practices and clinics worldwide for many decades.
As a family-run company, we take responsibility for future generations. With our sustainability strategy Mission Possible, we want to make it as easy as possible for you to make your instrument decontamination process even more environmentally conscious.
For the future of our blue planet, the three P's - products, processes and production - are at the heart of everything we do:
Products - Sustainability through innovation: Thanks to forward-looking technologies, durable quality and environmentally friendly packaging materials, we offer the cleanest solution - for your budget and the environment!
Processes - Save paper, protect the environment: With paperless user documentation and digital signatures, we save 7 tonnes of paper, 105 kg of toner ink and 50 kg of plastic waste from toner cartridges per year.
Production - Sustainability right from the start: We already rely on resource-saving approaches in research, development and production. In addition to the use of water recooling systems, electric forklifts and LED lighting, we will raise the bar for sustainable production even higher in the future with solar modules on our roofs. We already obtain 100% of our green electricity from renewable sources.
Our commitment in these areas was recognised for the first time in 2022 by the German Institute for Sustainability & Economics with the seal of approval for assured sustainability in accordance with procedural regulation D-22/400879 and following ISO 26000.
For your safety: Everything from one source! Our washer-disinfectors, sealing devices, autoclaves and software solutions turn your dreams of optimized workflows into reality. The perfect interplay of MELAG System Solutions allow you to achieve greater time and cost-savings in instrument reprocessing.
Personal: One central contact to answer all your instrument reprocessing questions
Efficiency: Cost optimisation by synchronizing the service of all devices in your decontamination room
Process-optimized: Technologies and operating concepts that go hand in hand and adapt optimally to your needs
Save even more time, space, and money with Careclave.
Are you looking not only for a cleaning and maintenance device, but also for a new autoclave? Then take advantage of the Careclave’s globally unique design, which combines cleaning, disinfection, maintenance, and sterilization in a single device.
MELAcare automatically recognises whether Lid Blue or Lid Green is inserted and intelligently adapts the programme run to your instruments - for maximum efficiency, safety and fewer errors in everyday practice.
programs
~ 0 min
Care-Therm Green*
~ 0 min
Intelligent additional cooling** (optional)
External and internal cleaning, thermal disinfection at 95 °C, internal drying & pre-cooling; * Temperature of the instruments: approx. 70 °C ** Temperature of the instruments: approx. 50 °C
Dimension
Device dimensions (W x H x D)
31 x 44 x 38 cm
Device fits on
60 cm deep worktop
Device weight
~ 16 kg
electrical and technical requirements
Item number
ME10600
Power supply
200-240 V, 50 / 60 Hz
Power consumption
1.8 kW
Compressed air connection
4 - 8 bar (compressed air according to ISO 7494-2)
Feed water supply
max. 35 °C, 1.5 - 10 bar, additional water treatment required
Language: English | Publication date: 12.12.2025 | PDF 214.03 Kb
1. intensive cleaning with ULTRAflow

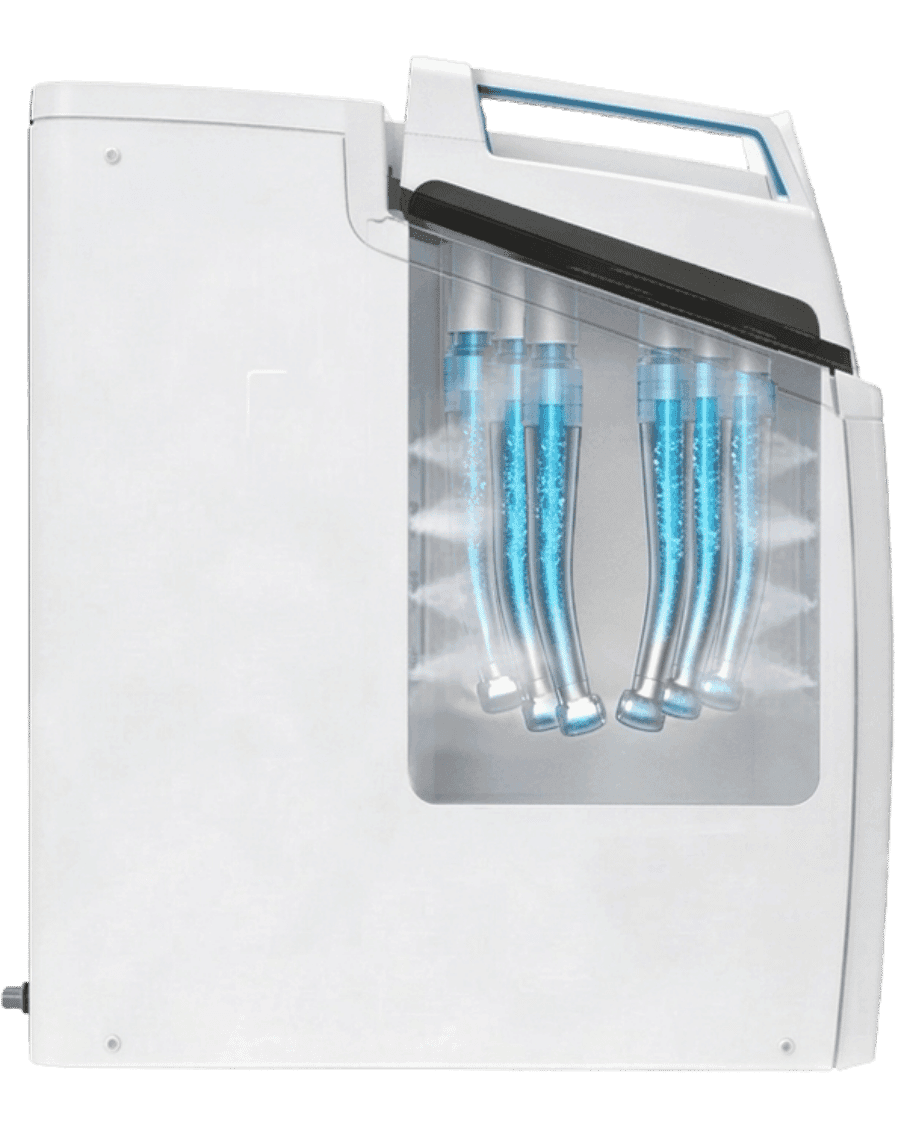

Step 1: Intensive cleaning with ULTRAflow Technology for powerful cleaning inside and out - with compressed air-accelerated demineralized water, completely without chemicals, for all-round brilliant results.

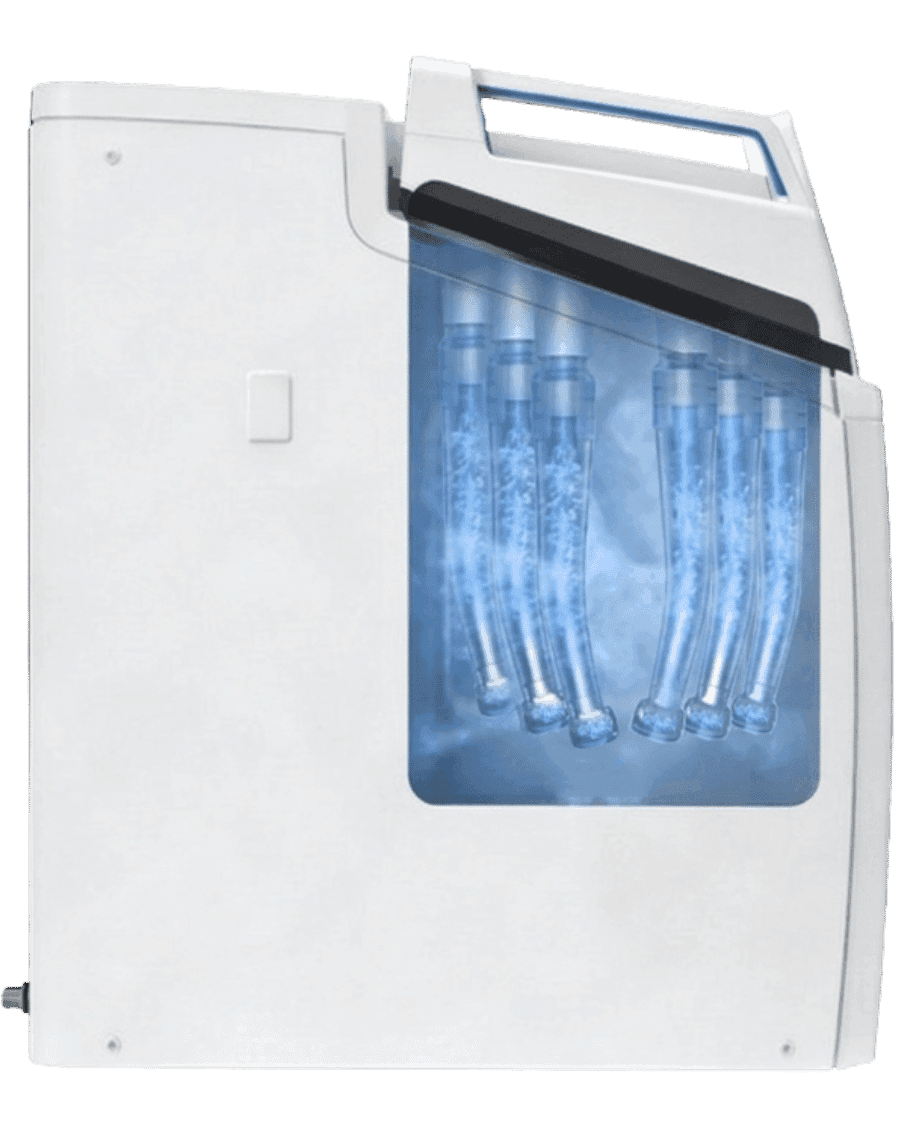

Step 2: Disinfection at approx. 95 °C (A0 value 3,000) exposes your instruments to significantly lower temperatures and achieves a broad spectrum of efficacy - bactericidal, mycobactericidal, fungicidal and effective against thermolabile and thermostable viruses.

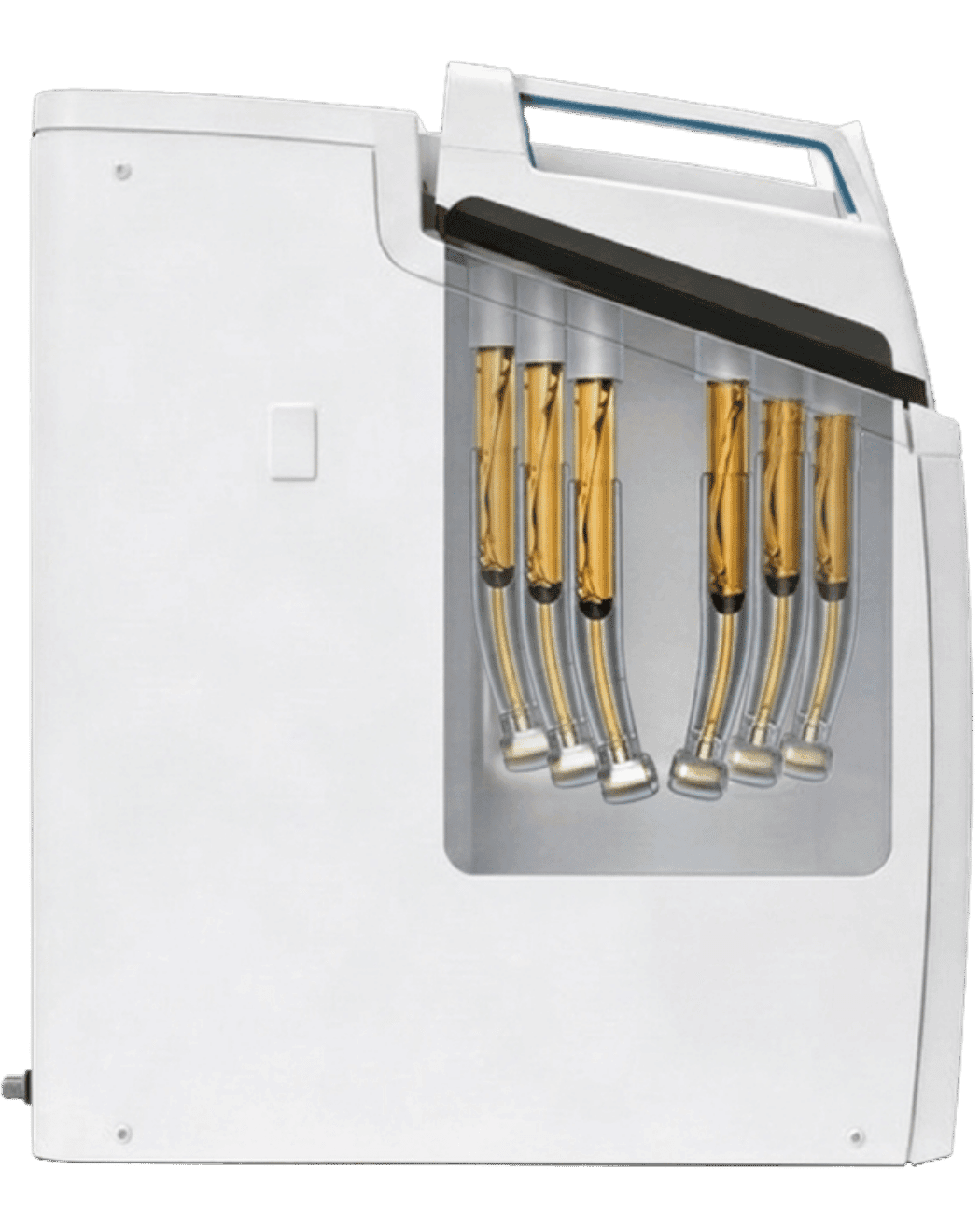

Step 3: The fully synthetic oil supplies all gear channels of rotating instruments in a targeted manner - for lasting optimum function and value retention. Chuck care is also conveniently carried out directly on the MELAcare.
Step 4: The spray and drive channels of your instruments are rinsed with compressed air during the process, dried and gently cooled at the same time.
The intelligent additional cooling system ensures that the instruments are ready for use in approx. 5 minutes at the end of the process - without any additional handling.
